12NC: 859991717760 | EAN Code: 8690842991806

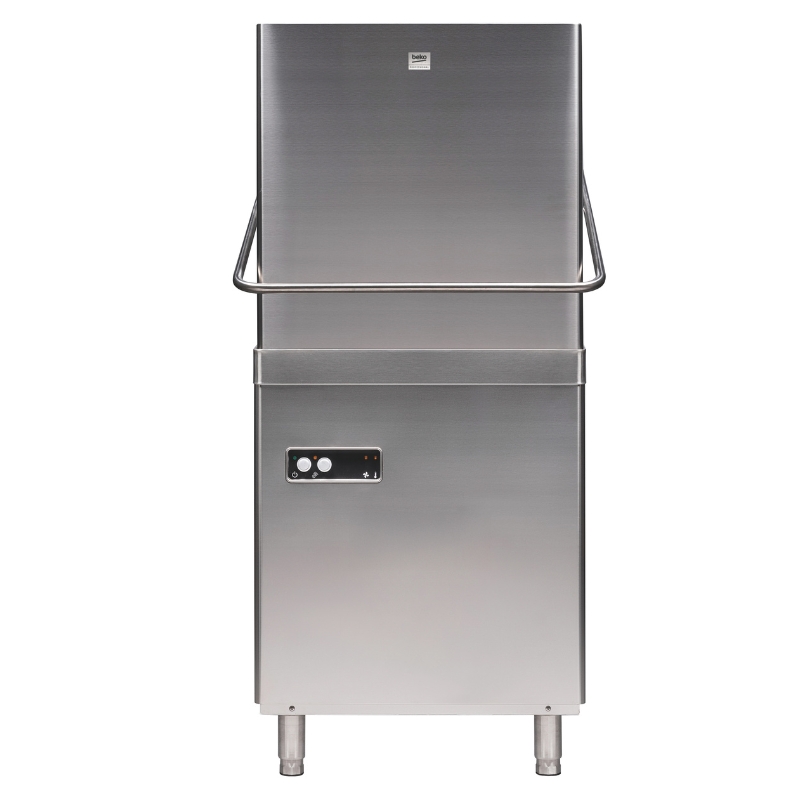

ECM 532U BP - Professional Hood Dish Washer Mechanical
Eco-Line Hood machine with mechanical control. Single-panel wash tank. Built-in rinse aid dosing. Standard overflow pipe.
Read more
MAIN FEATURES
Width of the product (mm)
655
Depth of the product (mm)
785
Height of the product (mm)
1480
Voltage (V)
400/3N
Product details
- Technical features
- Documents
Technical features
Documents
Product Features
- Basket size (depth x width mm): 500x500
- Max item height (mm): 430
- Detergent dosing: No
- Double panel: Yes
- Drain pump: No
- Rinsing arm material: Plastic
- Standard Equipment: 2 18 dish baskets 1 baskets 2 cutlery holder
- Tank capacity (L): 20
- Type of control: Mechanical
- Upper washing arm: Yes
- Wash cycle (s): 120/180
- Wash pump power (kW): 0.52
- Automatic softener: No
- Plug type: No
- Main colour of product: Stainless steel
- Range Name: ECO line
- User Interface: LED
- Construction type: Free-standing
- Automatic drain: No
- Beer cycle (10 s): No
- CRV: No
- HI-Energy efficiency system: No
- Integral rinse aid dosing: Yes
- Integrated osmosis system: No
- Overflow pipe standard: Yes
- Description: Eco-Line Hood machine with mechanical control. Single-panel wash tank. Built-in rinse aid dosing. Standard overflow pipe. Read more
Technical Specification
- Width of the product (mm): 655
- Depth of the product (mm): 785
- Height of the product (mm): 1480
- Width of the packed product (mm): 900
- Depth of the packed product (mm): 800
- Height of the packed product (mm): 1700
- Net weight (kg): 105
- Gross weight (kg): 116
- Voltage (V): 400/3N
- Frequency (Hz): 50
- Motor power (W): 6520
- Rinse Water consumption (lt): 3 Read more
