12NC: 859991717460 | EAN Code: 8690842990991

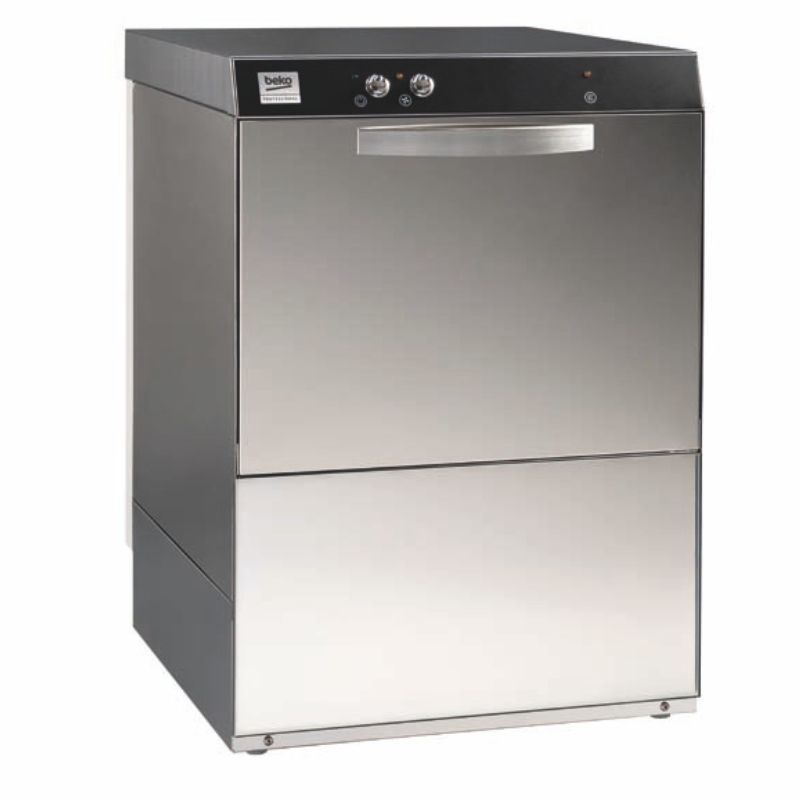

EDM 5U BP - Professional Dishwasher Mechanical
Eco-Line Dishwasher with mechanical control. Single-panel wash tank. Built-in rinse aid dosing. Upper washing arm.
Read more
MAIN FEATURES
Width of the product (mm)
565
Depth of the product (mm)
610
Height of the product (mm)
825
Voltage (V)
230
Product details
- Innovation and technology
- Technical features
- Documents
Innovation and technology
![]()
![]()
![]()
![]()
TOP QUALITY - STAINLESS STEEL AISI 304
All products are made in Italy and in Stainless Steel AISI 304 that guarantees top quality. The stainless steel structure and the rounded corner design makes cleaning operations much easier and the product more hygienic.
Read more
INSULATED DOUBLE-SKIN CABINET & DOUBLE WALL DOOR
The double wall structure of the door and the insulated double-skin cabinet ensure a lower noise level and reduce heat emission.
Read more
DOUBLE FILTER
The double filter in the washing tank guarantees the best hygiene and the total protection of the washing pump. All LCD models and the Capot machines even have three filters.
Read more
GS-TUV CERTIFICATION
All products boast the GS-TUV Certification that guarantees lasting mechanical and electrical safety.
Read more
Product Features
- Basket size (depth x width mm): 500x500
- Max item height (mm): 330
- Detergent dosing: No
- Double panel: No
- Drain pump: No
- Rinsing arm material: Plastic
- Standard Equipment: 2 18 dish baskets, 1 cutlery holder
- Tank capacity (L): 23
- Type of control: Mechanical
- Upper washing arm: Yes
- Wash cycle (s): 180
- Wash pump power (kW): 0.4
- Automatic softener: No
- Plug type: Schuko
- Main colour of product: Stainless steel
- Range Name: ECO line
- User Interface: LED
- Construction type: Free-standing
- Automatic drain: No
- Beer cycle (10 s): No
- CRV: No
- HI-Energy efficiency system: No
- Integral rinse aid dosing: Yes
- Integrated osmosis system: No
- Overflow pipe standard: Yes
- Description: Eco-Line Dishwasher with mechanical control. Single-panel wash tank. Built-in rinse aid dosing. Upper washing arm. Read more
Technical Specification
- Width of the product (mm): 565
- Depth of the product (mm): 610
- Height of the product (mm): 825
- Width of the packed product (mm): 650
- Depth of the packed product (mm): 750
- Height of the packed product (mm): 1000
- Net weight (kg): 47
- Gross weight (kg): 55
- Voltage (V): 230
- Frequency (Hz): 50
- Motor power (W): 3900
- Rinse Water consumption (lt): 3 Read more
