12NC: 859991717850 | EAN Code: 8690842991875

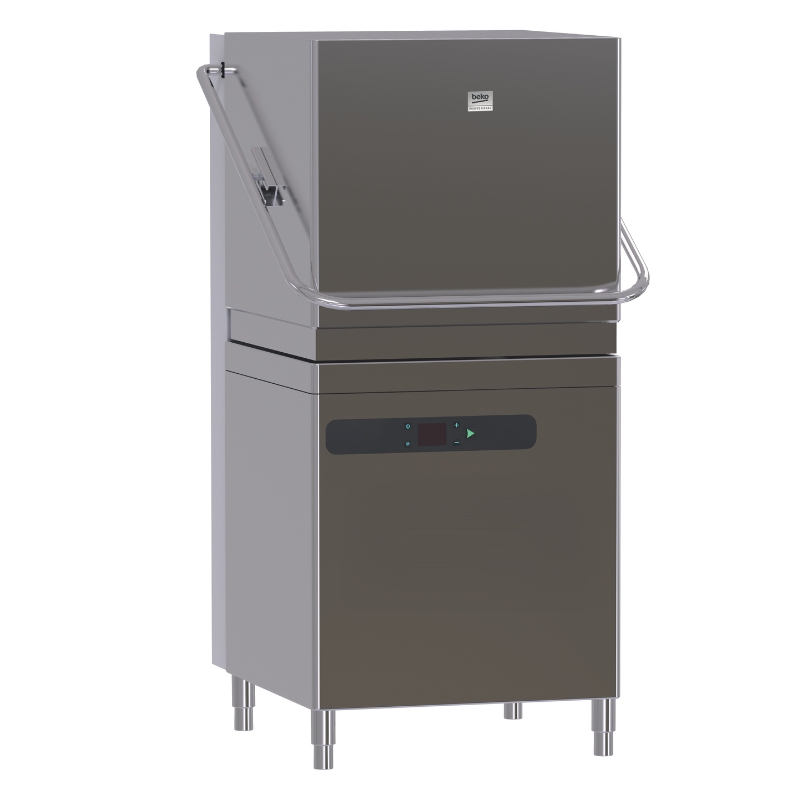

HCL 534SAC BP - Professional Hood Dishwasher LCD

High Line Hood machine with LCD user interface. 4 powerful washing programmes. Double-panel wash tank. Built-in rinse aid dosing. Detergent dosing. Hi-Energy efficiency system. Drain pump. Stainless steel rinsing arm. Upper washing arm. Automatic drain. Automatic softner. CRV system.

Read more
MAIN FEATURES
Width of the product (mm)
655
Depth of the product (mm)
785
Height of the product (mm)
1675
Voltage (V)
400/3N

For more information about our products and where to buy in your country, please visit our Contact Us page

See more
Product details
  • Innovation and technology
  • Technical features
  • Documents
Innovation and technology
HI-ENERGY EFFICIENCY SYSTEM The Standard and High line ranges are equipped with the HI-Energy efficiency system, the advanced technology that, thanks to the atmospheric boiler combined with the break tank, always allows the machine to have the water necessary for the rinse maintained at the right temperature and pressure. This technology guarantees not only the sanitising action and improved removal of detergent residues but also time and energy saving. Read more
CRV - THE INNOVATIVE HEAT RECOVERY SYSTEM The hood dishwasher line is available with an innovative technology, the CRV system, that saves energy and improves the work conditions by reducing the humidity in the work environment. The «CRV» is a heat recovery system that turns the steam created during the washing phase into warm water used for the rinsing phase of the next cycle. Thanks to this device you can use an heating element of just 6kW instead of 10kW, without any compromise on the result. Moreover, the CRV System improves the work conditions for operators because all the steam is drawn in instead of being released into the workplace. Read more
AUTOMATIC WATER SOFTNER The automatic water softener reduces the water hardness thanks to special resins that convert ions of calcium, iron and magnesium into ions of sodium, while helping to prevent possible damages due to calcareous deposits. Read more
TOP QUALITY - STAINLESS STEEL AISI 304 All products are made in Italy and in Stainless Steel AISI 304 that guarantees top quality. The stainless steel structure and the rounded corner design makes cleaning operations much easier and the product more hygienic. Read more
INSULATED DOUBLE-SKIN CABINET & DOUBLE WALL DOOR The double wall structure of the door and the insulated double-skin cabinet ensure a lower noise level and reduce heat emission. Read more
DOUBLE FILTER The double filter in the washing tank guarantees the best hygiene and the total protection of the washing pump. All LCD models and the Capot machines even have three filters. Read more
GS-TUV CERTIFICATION All products boast the GS-TUV Certification that guarantees lasting mechanical and electrical safety. Read more
PREMIUM LCD USER INTERFACE The cutting-edge electronic control panel with large TFT colour screen is the largest on the market. It measures 45x60mm and has high-resolution animation graphics. It ensures straighforward and intuitive use of the dishwashers, providing information such as temperature, working phases, time to end, machine status, potential anomalies. Read more
Technical features
Product Features
  • Basket size (depth x width mm): 500x500
  • Max item height (mm): 430
  • Detergent dosing: Yes
  • Double panel: Yes
  • Drain pump: Yes
  • Rinsing arm material: Stainless steel
  • Standard Equipment: 2 18 dish baskets, 1 glass basket, 2 cutlery holders
  • Tank capacity (L): 30
  • Type of control: Electronic
  • Upper washing arm: Yes
  • Wash cycle (s): 60/120/180/480
  • Wash pump power (kW): 1.1
  • Automatic softener: Yes
  • Plug type: No
  • Main colour of product: Stainless steel
  • Range Name: HIGH line
  • User Interface: LCD
  • Construction type: Free-standing
  • Automatic drain: Yes
  • Beer cycle (10 s): Yes
  • CRV: Yes
  • HI-Energy efficiency system: Yes
  • Integral rinse aid dosing: Yes
  • Integrated osmosis system: No
  • Overflow pipe standard: No
  • Description: High Line Hood machine with LCD user interface. 4 powerful washing programmes. Double-panel wash tank. Built-in rinse aid dosing. Detergent dosing. Hi-Energy efficiency system. Drain pump. Stainless steel rinsing arm. Upper washing arm. Automatic drain. Automatic softner. CRV system.
    • Read more
Technical Specification
  • Width of the product (mm): 655
  • Depth of the product (mm): 785
  • Height of the product (mm): 1675
  • Width of the packed product (mm): 900
  • Depth of the packed product (mm): 800
  • Height of the packed product (mm): 1900
  • Net weight (kg): 120
  • Gross weight (kg): 131
  • Voltage (V): 400/3N
  • Frequency (Hz): 50
  • Motor power (W): 7100
  • Rinse Water consumption (lt): 3
    • Read more
Documents
Instruction for use (DE)
Instruction for use (EN)
Instruction for use (ES)
Instruction for use (FR)
Instruction for use (IT)
