12NC: 859991717890 | EAN Code: 8690842992278

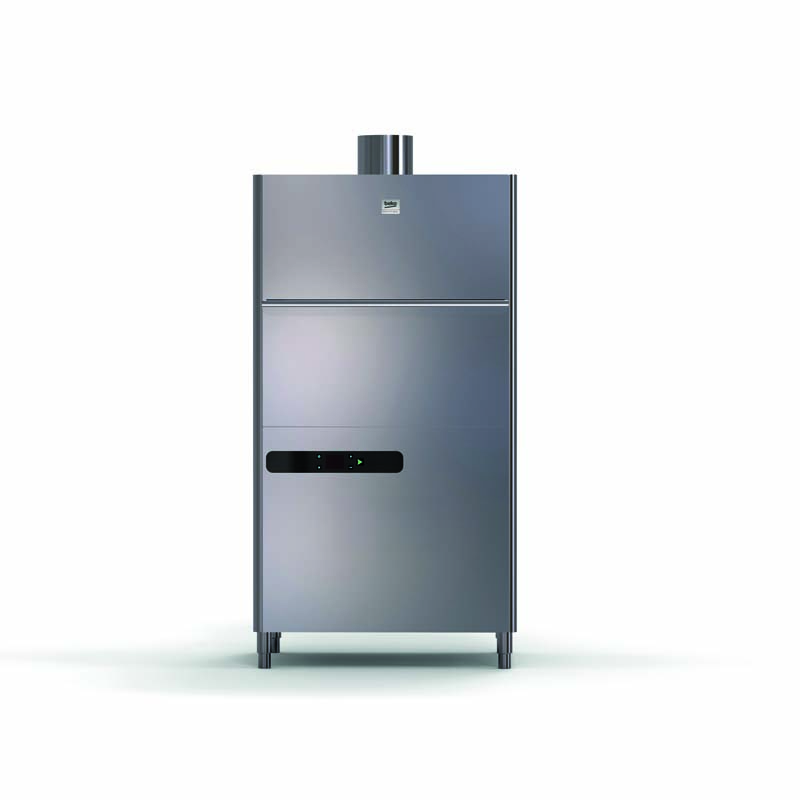

HPL 734 BP - Professional Pot Dishwasher LCD

High Line POT machine with LCD user interface. 4 powerful washing programmes. Double-panel wash tank. Built-in rinse aid dosing. Detergent dosing. Hi-Energy efficiency system. Stainless steel rinsing arm. Upper washing arm.

MAIN FEATURES

Width of the product (mm)

855

Depth of the product (mm)

820

Height of the product (mm)

2160

Voltage (V)

400/3N

For more information about our products and where to buy in your country, please visit our Contact Us page

Product details

Innovation and technology
Technical features
Documents

Innovation and technology

HI-ENERGY EFFICIENCY SYSTEM The Standard and High line ranges are equipped with the HI-Energy efficiency system, the advanced technology that, thanks to the atmospheric boiler combined with the break tank, always allows the machine to have the water necessary for the rinse maintained at the right temperature and pressure. This technology guarantees not only the sanitising action and improved removal of detergent residues but also time and energy saving. Read more

TOP QUALITY - STAINLESS STEEL AISI 304 All products are made in Italy and in Stainless Steel AISI 304 that guarantees top quality. The stainless steel structure and the rounded corner design makes cleaning operations much easier and the product more hygienic. Read more

INSULATED DOUBLE-SKIN CABINET & DOUBLE WALL DOOR The double wall structure of the door and the insulated double-skin cabinet ensure a lower noise level and reduce heat emission. Read more

DOUBLE FILTER The double filter in the washing tank guarantees the best hygiene and the total protection of the washing pump. All LCD models and the Capot machines even have three filters. Read more

GS-TUV CERTIFICATION All products boast the GS-TUV Certification that guarantees lasting mechanical and electrical safety. Read more

PREMIUM LCD USER INTERFACE The cutting-edge electronic control panel with large TFT colour screen is the largest on the market. It measures 45x60mm and has high-resolution animation graphics. It ensures straighforward and intuitive use of the dishwashers, providing information such as temperature, working phases, time to end, machine status, potential anomalies. Read more

Technical features

Product Features

Basket size (depth x width mm): 665x665
Max item height (mm): 860
Detergent dosing: Yes
Double panel: Yes
Drain pump: No
Rinsing arm material: Stainless steel
Standard Equipment: 1 universal stainless steel basket with wheels, 1 banking tray basket
Tank capacity (L): 55
Type of control: Electronic
Upper washing arm: Yes
Wash cycle (s): 180/360/540/600
Wash pump power (kW): 3.2
Automatic softener: No
Plug type: No
Main colour of product: Stainless steel
Range Name: HIGH line
User Interface: LCD
Construction type: Free-standing
Automatic drain: No
Beer cycle (10 s): Yes
CRV: No
HI-Energy efficiency system: Yes
Integral rinse aid dosing: Yes
Integrated osmosis system: No
Overflow pipe standard: Yes
Description: High Line POT machine with LCD user interface. 4 powerful washing programmes. Double-panel wash tank. Built-in rinse aid dosing. Detergent dosing. Hi-Energy efficiency system. Stainless steel rinsing arm. Upper washing arm.

Technical Specification

Width of the product (mm): 855
Depth of the product (mm): 820
Height of the product (mm): 2160
Width of the packed product (mm): 1100
Depth of the packed product (mm): 1000
Height of the packed product (mm): 2500
Net weight (kg): 233
Gross weight (kg): 253
Voltage (V): 400/3N
Frequency (Hz): 50
Motor power (W): 12200
Rinse Water consumption (lt): 5
